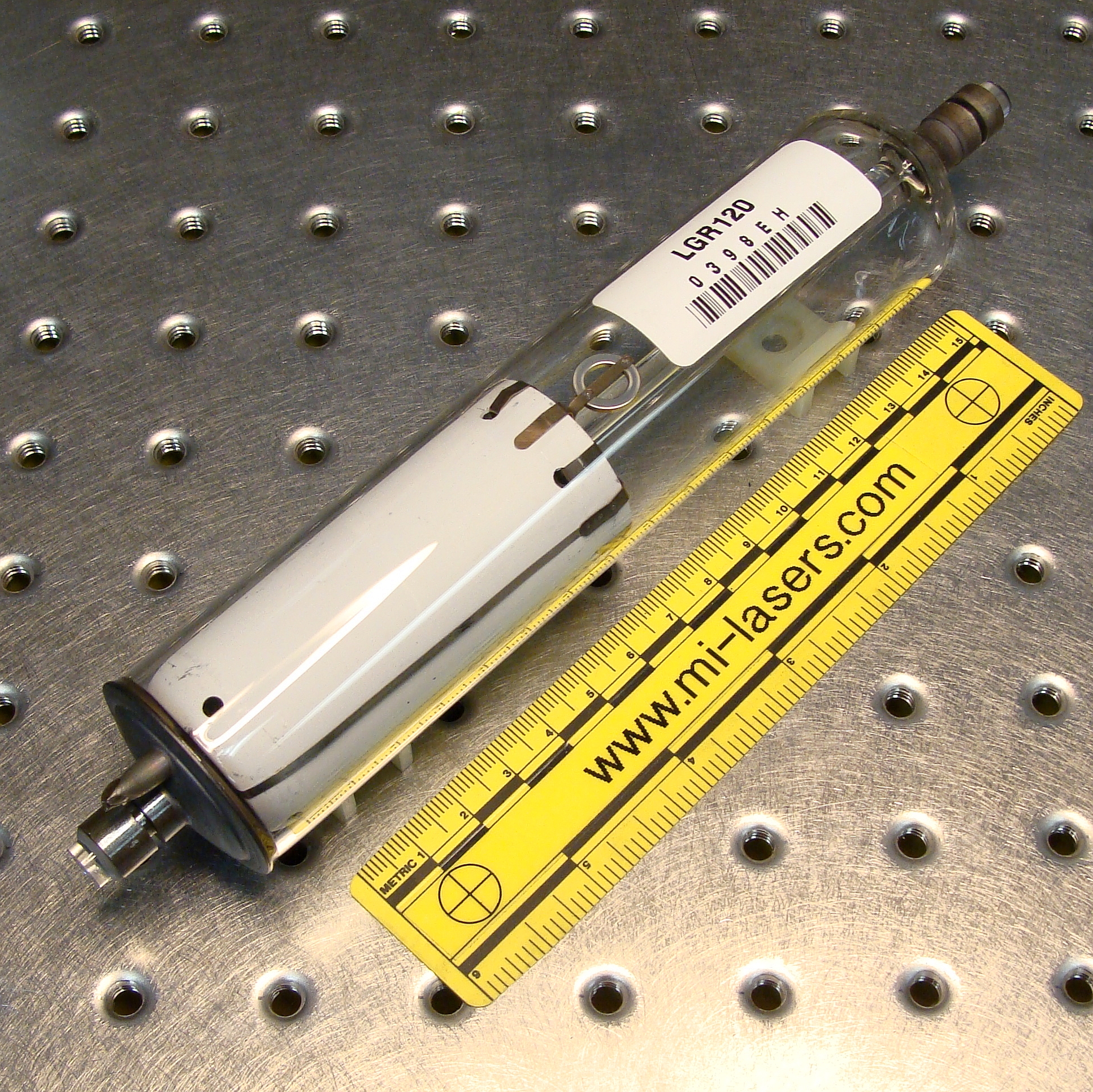

0.5 mW 543nm Green HeNe Laser Tube LGR-120

///0.5 mW 543nm Green HeNe Laser Tube LGR-120

0.5 mW 543nm Green HeNe Laser Tube LGR-120

$149.00

Out of stock

These are new, hard sealed laser tubes for your OEM, replacement, or experimental needs. Other types of tubes may be available. Please email us for more information.

SPECIFICATIONS:

Manufacture / Part Number: Melles Griot, model LGR120
Output Power: 0.3 mW minimum, 0.6 mW typical
Wavelength: 543.5 nm GREEN
Polarization:
Random
Mode: TEMoo
Beam Diameter: 0.85 mm
Beam Divergence: 1.2 mRads.
Light Exit: Cathode end of tube.
Operating Voltage: 1650 VDC (with 75K ballast).
Start Voltage: 10KV.
Operating Current Range:  5.0 mA Ideal.
Recommended Ballast Resistor: 75K Ohms, 5 Watt.
(Add in series to the anode lead within 3″ of the tube.)
Recommended Power Supply: E-21, F-22, DG-22, LAB-S-22.
Dimensions: 8.5″ long x 1.5″ diameter.
Warranty: Limited 30 days from date of purchase.

Out of stock

SKU: LGR120 Categories: ,

Additional information

Weight 1.5 lbs
Dimensions 11 x 2 x 2 in
