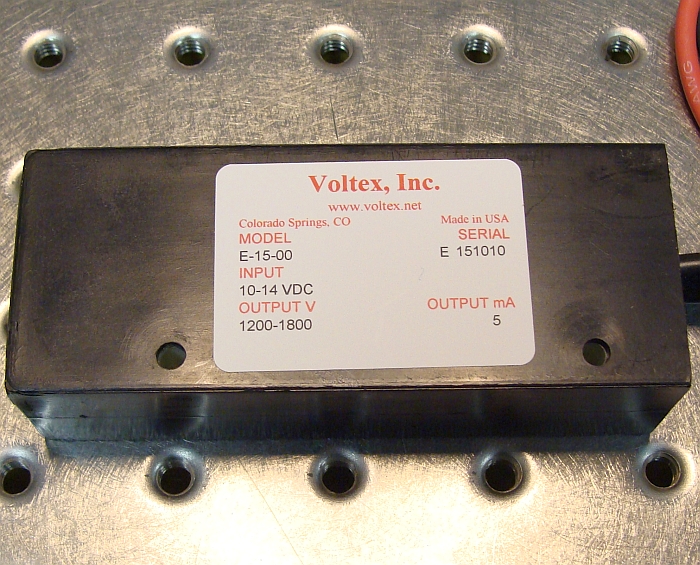

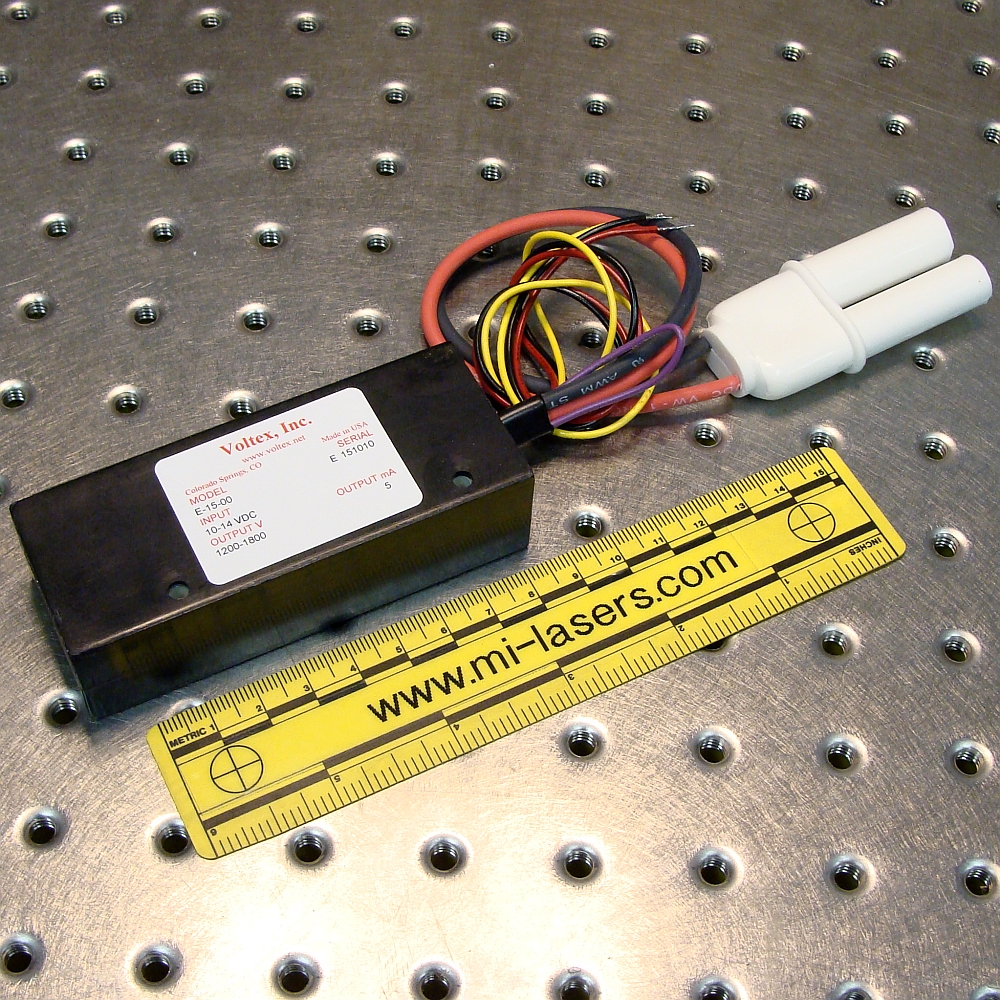

12 VDC HeNe Laser Power Supply for 6″ to 9″ heads

////12 VDC HeNe Laser Power Supply for 6″ to 9″ heads

12 VDC HeNe Laser Power Supply for 6″ to 9″ heads

$179.00

3 in stock (can be backordered)

We stock Voltex HeNe laser power supplies known for their high efficiency, reliability, and rugged construction. Hook-up diagram included. These are new units

Specifications:

Input Voltage: 10 to 14 VDC, 15 to 20 Watts.
Output Voltage: 1100 to 1800 VDC.
Output Current: 3 to 6.5 mA, user adjustable.
Trigger Voltage: >8KV
Input Leads: 10″, 22 AWG. Flying.
Output Leads: Alden high voltage connector or equivalent.
Dimensions: 3.75 X 1.5 X 1.0 inches (95 x 38 x 25 mm)
Mounting holes: 2.3″ center spacing.
Warranty: 30 days from date of purchase.

Features:
4 second Turn-on delay (defeat by cutting violet wire loop)
TTL turn-on (yellow wire to ground=ON)
Alden high voltage output connector.

3 in stock (can be backordered)

SKU: E-15 Categories: , ,

Additional information

Weight 1 lbs
Dimensions 6 x 4 x 1 in
