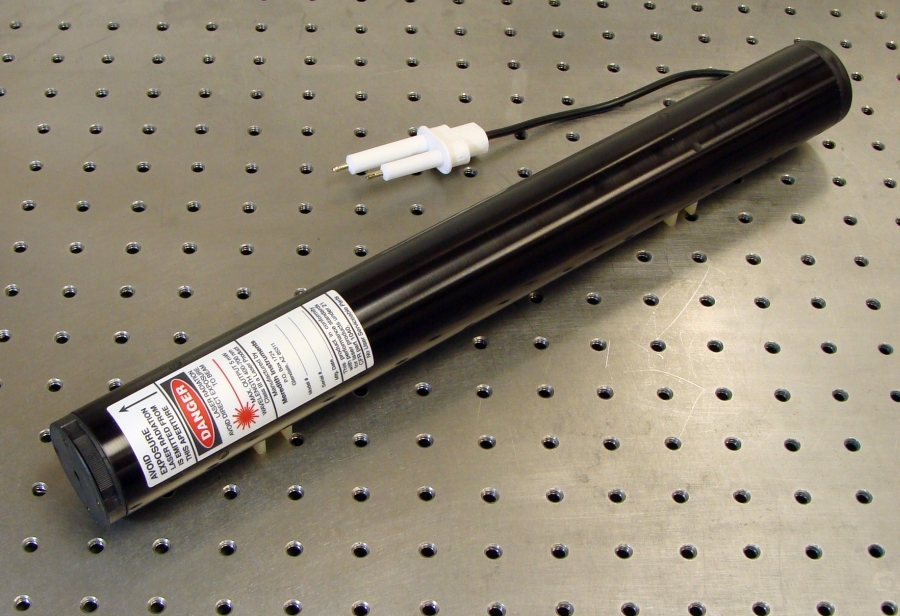

These are new, hard sealed laser heads for your OEM, replacement, or experimental needs. Heads have integral ballast resistor, mechanical shutter, and mounting holes for accessories. Other types of heads may be available. Please call for more information.
Specifications:
Output Power: 5.0 mW minimum 6.4 mW typical
Wavelength: 632.8nm RED
Polarization: Linear 500:1 (Random may be available, please call or email for availability)
Mode: TEMoo
Beam Diameter: 0.80mm
Beam Divergence: 1.0 mRads.
Aperture Mount: 4x 4-40 tapped holes 25.4 mm square spacing.
Operating Voltage: 2450 VDC.
Start Voltage: 10KV.
Operating Current Range: 6 to 7 mA, 6.5 mA Ideal.
Input Lead: Male Alden connector with a 178 mm long cord. (extension cord available)
Recommended Power Supply: LAB-S-22, DG-22, E-21, F-22.
Dimensions: 401 mm long x 44.5 mm diameter.
Warranty: Limited 30 days from date of purchase.
