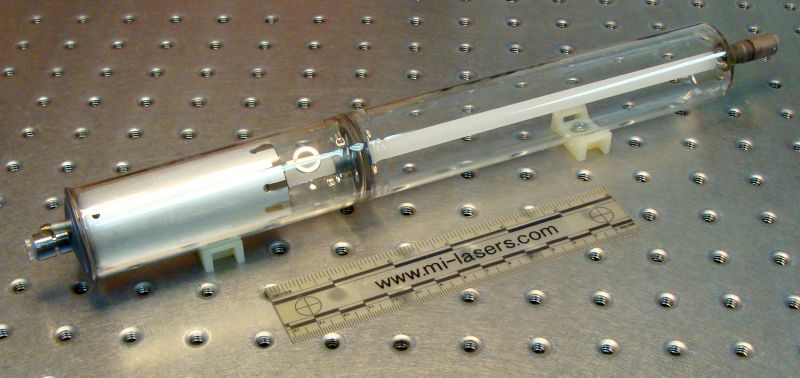

5mW 633nm Red HeNe Laser Tube

$295.00

Out of stock

These are new, hard sealed laser tubes for your OEM, replacement, or experimental needs. Other types of tubes may be available. Please email us for more information.

 Specifications:

Output Power: 4.0 mW minimum 5.5 mW typical 8.0 mW maximum.
Wavelength: 632.8 nm RED
Polarization:
 Linear 500:1, (random may be available, please call or email for availability)
Mode: TEMoo
Beam Diameter: 0.80 mm
Beam Divergence: 1.0 mRads.
Light Exit: Cathode end of tube.
Operating Voltage: 2390 VDC (with 75K ballast).
Start Voltage: 10KV.
Operating Current Range: 6 to 7 mA, 6.5 mA Ideal.
Recommended Ballast Resistor: 75K Ohms, 5 Watt.
(Add in series to the anode lead within 3″ of the tube.)
Recommended Power Supply: DG-22, E-21, LAB-S-22.
Dimensions: 13.8″ long x 1.45″ diameter.
Warranty: Limited 30 days from date of purchase.

Out of stock

SKU: LTP-150 Categories: ,

Additional information

Weight 1.75 lbs
Dimensions 14 × 2 × 2 in
