Lab Style Power Supply for 16 to 20 Inch Heads

////Lab Style Power Supply for 16 to 20 Inch Heads

Lab Style Power Supply for 16 to 20 Inch Heads

$389.00

5 in stock

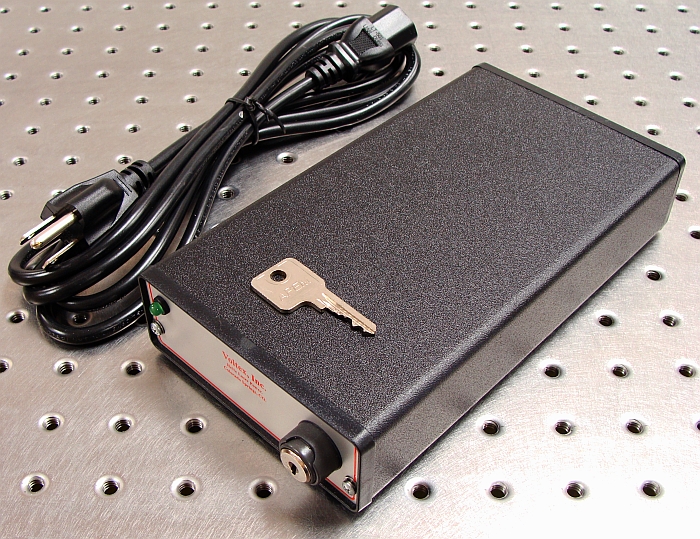

New voltex inc lab style Helium Neon laser power supply.

Features include:

  • Universal AC power input: 100 to 240 VAC 50/60 Hz.
  • CDRH compliance:¬†Key switch, pilot light, turn-on delay, and remote interlock.
  • CE compliance
  • Compact size: only 1.5 x 4.13 x 7.88 inches ( 38 x 150 x 200mm)
  • High efficiency: >85% conversion efficiency for cool operation and long life.
  • Internal bleed-down resistor: to reduce shock hazard from the laser head.

Specifications:

Input: 100 to 240 VAC 50/60 Hz.
Uses business machine type AC cord. Includes an AC cord with a North American standard connector.
Output: 2400-3200 VDC, 5 to 7 mA *(factory preset at 6.5mA)
*Output current adjustable via internal trim potentiometer.*
** Please contact us if you would like us to preset the current to a specified amount.**

Start voltage: >10KV.
Line filtering:
Internal EMI line filter.
Output fault protection: Open circuit, short circuit, and arc conditions.
CDRH delay: 3 to 5 seconds. (Defeatable by cutting internal violet wire loop)
Output connector: Alden high voltage connector or equivalent.
Remote interlock: Jones plug type low voltage series circuit. Jumpered connector included.
Dimensions: 1.5 x 4.13 x 7.88 inches ( 38 x 150 x 200mm).
Warranty: Limited 1 year from date of purchase.

5 in stock

SKU: LAB-S-28 Categories: , ,

Additional information

Weight 2.75 lbs
Dimensions 10 × 9 × 2 in
