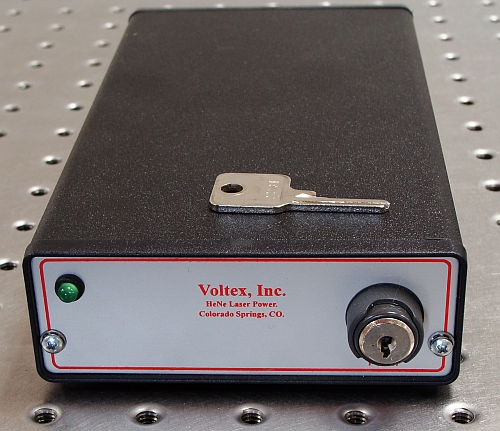

New voltex inc lab style Helium Neon laser power supply.
Features include:
- Universal AC power input: 100 to 240 VAC 50/60 Hz.
- CDRH compliance: Key switch, pilot light, turn-on delay, and remote interlock.
- CE compliance
- Compact size: only 1.5 x 4.13 x 7.88 inches ( 38 x 150 x 200mm)
- High efficiency: >85% conversion efficiency for cool operation and long life.
- Internal bleed-down resistor: to reduce shock hazard from the laser head.
Specifications:
Input: 100 to 240 VAC 50/60 Hz.

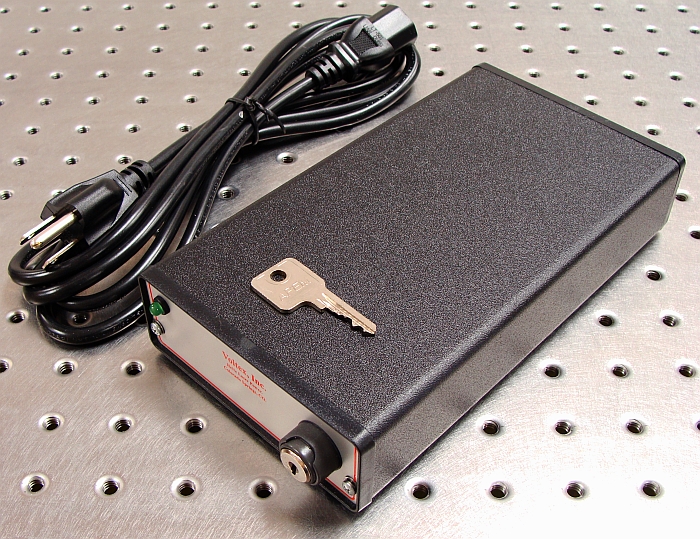

Uses business machine type AC cord. Includes an AC cord with a North American standard connector.
Output: 1900-2600 VDC, 4 to 7 mA* (factory preset at 6.5mA)
*Output current adjustable via internal trim potentiometer.*
** Please contact us if you would like us to preset the current to a specified amount.**
Start voltage: >10KV.
Line filtering: Internal EMI line filter.
Output fault protection: Open circuit, short circuit, and arc conditions.
CDRH delay: 3 to 5 seconds. (Defeatable by cutting internal violet wire loop)
Output connector: Alden high voltage connector or equivilent.
Remote interlock: Jones plug type low voltage series circuit. Jumpered connector included.
Dimensions: 1.5 x 4.13 x 7.88 inches ( 38 x 150 x 200mm).
Warranty: Limited 1 year from date of purchase.
