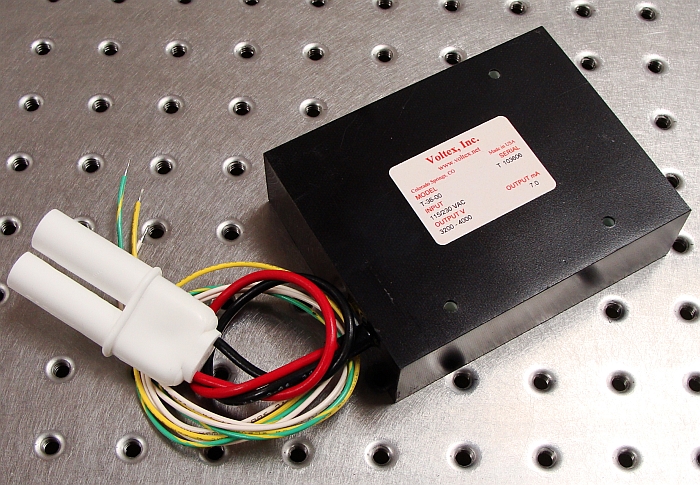

We stock Voltex HeNe laser power supplies known for their high efficiency, reliability, and rugged construction. Hook-up diagram included.
Specifications:
Input Voltage: 110 / 220 VAC, 50 to 60 Hz.
Output Voltage: 3200 to 4000 VDC.
Output Current: 5 to 7 mA, user adjustable.
Trigger Voltage: 12 KV
Input Leads: 10″, 22 AWG. Flying.
Output Leads: Alden high voltage connector or equivalent.
Dimensions: 4.3″ X 3.3″ X 1.3″
Mounting holes: 2.3″ center spacing.
Warranty: 30 days from date of purchase.
