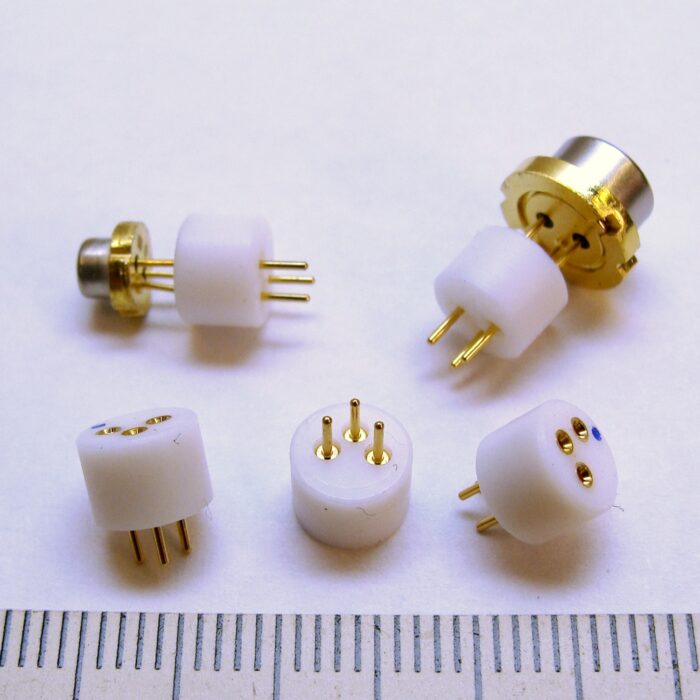

The LDS-2 is a PC mount, three pin electrical socket that fits both 5.6mm and 9mm diameter base diodes. The socket accepts laser diodes with wire leads 24 to 26 gauge, 0.016 to 0.020 inches (0.41 to 0.51 mm) diameter. The maximum recommended current is 3 Amps.
Specifications:
Insulator: Teflon
Sleeve: Brass
Contact Plating: Beryllium Copper
Plating: Gold over all contacts and sleeves

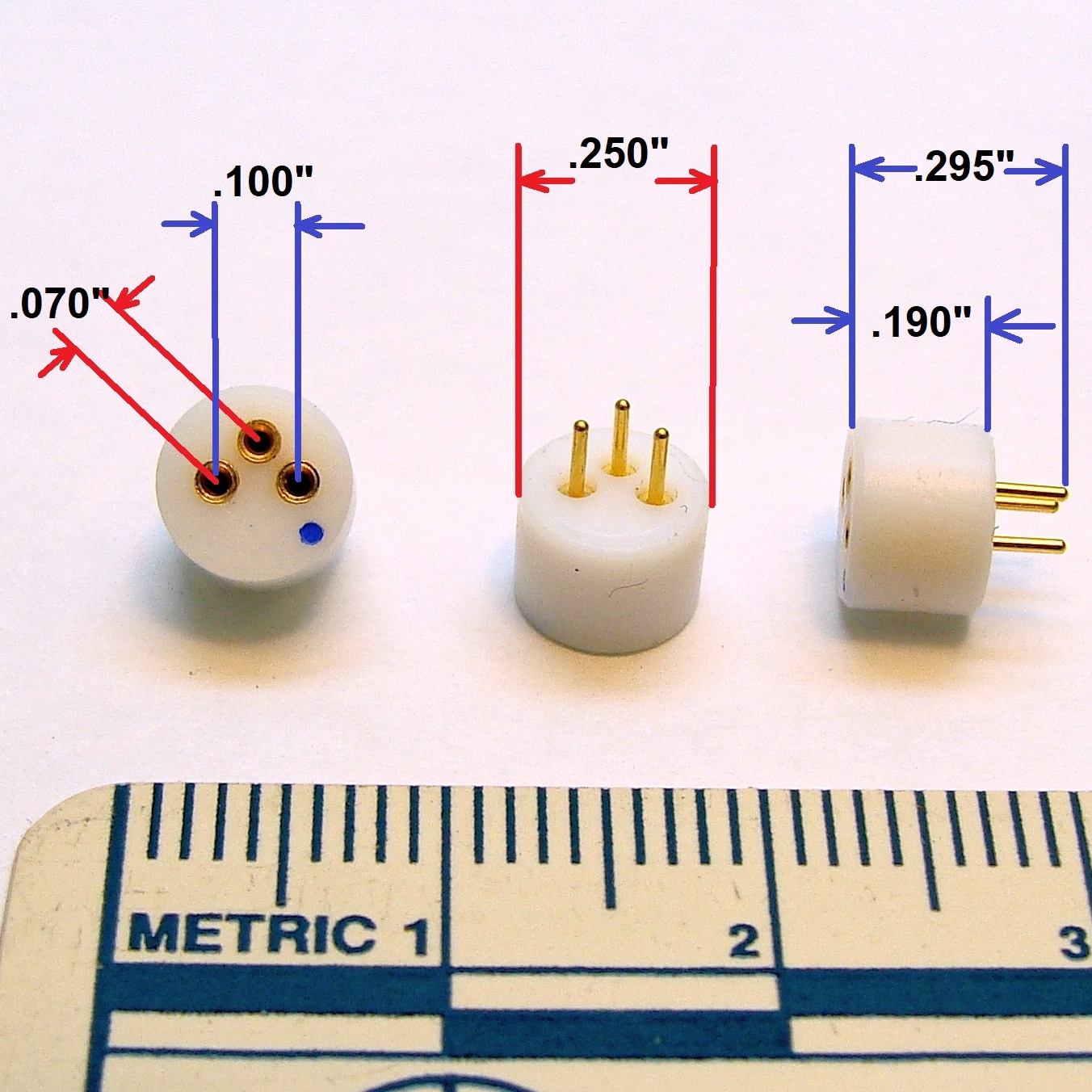

Outside dimensions: 0.4″ long x 0.25″ (10.2 x 6.35 mm) diameter.
Pin Spacing: 3 pins centered around a 0.10″ (2.54 mm) circle
